Polyamide vs Nylon Delivers Ultimate Strength for 5 Critical Aerospace CNC Applications

The aerospace sector is based on the most demanding environment imaginable and flaw of material can have disastrous effects. This renders the choice of materials as one of the most important decisions that engineers make when coming up with aircraft parts. Of all the materials that have transformed the manufacturing of aerospace, polyamide vs nylon relationship is one of the most confusing issues even to a professional, but it is important to know the difference between the two materials when one is keen on aerospace engineering or high-tech manufacturing.

When engineers are talking about polyamide vs nylon when referring to CNC machined aerospace parts, they are talking about much more closely related materials than most people might think. This guide will help clarify the association between these materials and state why they became irreplaceable nowadays in aircraft production.

Understanding the True Relationship Between Polyamide and Nylon

The misconception of polyamide vs nylon lies in the fact of a basic misunderstanding of what polyamide and nylon actually are. Polyamide is the family name of a cluster of synthetic polymers that are defined by repeating units that are connected by amide bonds. Nylon is, however, a brand name which is actually a generic name that has come to be used to refer to particular types of polyamides.

In simple terms, nylon is a polyamide though not all polyamides are nylon. This is just like the fact that not all tissues are Kleenex yet we refer to that brand name as such in a generic nature. In the 1930s, the DuPont company created nylon that became the first commercially successful synthetic fiber and soon became identified with polyamide materials when discussing them in general.

When aerospace engineers talk of polyamide vs nylon, they are referring to various grades of polyamide. They may consist of Nylon 6, Nylon 66 and Nylon 12 and other customized forms of polyamides that have been created to meet certain performance needs.

Exceptional aerospace use is due to the chemical structure of polyamides. The amide linkages form powerful intermolecular forces which give rise to high tensile strength, good wear resistance and capability of withstanding structure throughout a broad temperature spectrum.

Why Aerospace Engineering Demands Precision Material Selection

Aeronautical parts should be able to work perfectly in severe conditions such as the fast variation of temperatures, continuous vibration, contact with aircraft fuels and hydraulic fluids, and excessive mechanical pressure during takeoff and landing. The Federal Aviation Administration determines material failures as the reason of component-related aircraft incidents quite frequently, and the correct choice of materials is a question of safety and regulatory adherence.

Polyamide family of materials has been found to be especially useful in aerospace industry since such polymers provide a good balance of properties. They offer high strengths per weight ratios which assist in lowering the weight of aircraft resulting in fuel efficiency and long range. A single kilogram of weight saved in aircraft results in significant savings of fuel consumed by the aircraft during its operational life.

Loss of weight is not only economical. Less powerful engines are needed to operate lighter aircrafts, which emit less, as well as carry a larger amount of payload or passengers. This leaves the decision on the various polyamide formulations a tactical move that has the whole aircraft design.

Different Types of Polyamide Materials Used in Aerospace

In the comparison of polyamide vs nylon choices on aerospace CNC machining, the engineers consider various different grades of materials, which have their specific properties and are applied in the various applications.

Nylon 6 has good toughness, impact and dimensional stability. It also takes in moisture more easily than others, which may interfere with dimensional accuracy in wet environments, however, it machines easily and gives assured service in most aircraft interior applications.

Nylon 66 is stronger tensile and more resistant to heat compared to Nylon 6, thus it can be used in parts that experience high temperatures. It is the best structural element in situations where it is required to sustain a lot of mechanical loading.

Among the common grades of nylon, nylon 12 has the lowest ability to absorb water and this gives it better dimensional stability. This especially renders it useful in precision components where tight tolerances are required to be observed irrespective of environmental factors.

Polyamides filled with glass include glass fibers in the polymer which significantly enhances stiffness and strength and lowers thermal expansion. These are materials that are often used in aerospace where maximum structural performance is needed.

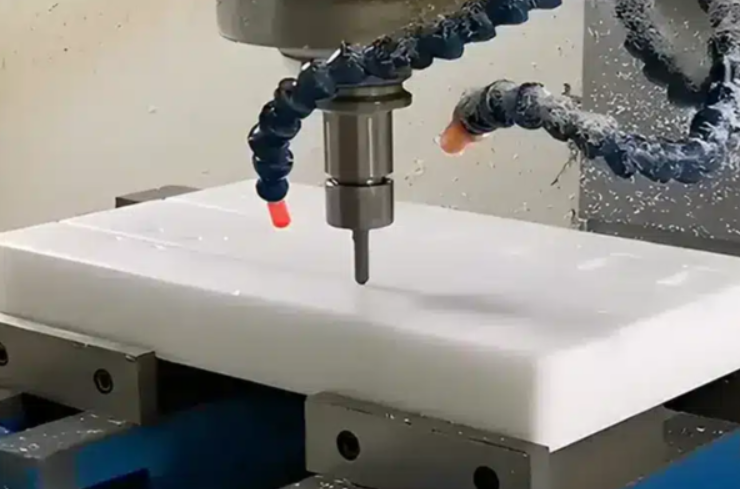

How CNC Machining Transforms Polyamide Materials for Aerospace Use

The CNC machining is the gold standard in forming precision aerospace components out of polyamide materials. This computerized manufacturing environment is used to cut material off solid blocks to produce parts with tolerances of thousands of an inch, which are necessary in aerospace applications where parts have to fit together.

The use of polyamide materials in CNC machining process takes special knowledge and equipment. Polyamides also do not dissipate heat as fast as metals do because polyamides are lower in thermal conductivity. This involves close monitoring of cutting speeds, feed rates and cooling procedures to ensure that materials are not degraded.

When dealing with polyamides, machinists have to consider that the material has a tendency to absorb moisture in air and this may result into dimensional changes. They are machined a bit oversize, and the machining is left to run, under controlled environmental conditions, before finishing operations are carried to deliver the final specifications.

Polymers that are polyamide require sharp cutting tools when machining. Sharp tools produce too much heat due to friction that may even melt the material instead of cutting it off in a straight line. The tool geometry used in plastics is made to provide clean cuts and good surface finishes.

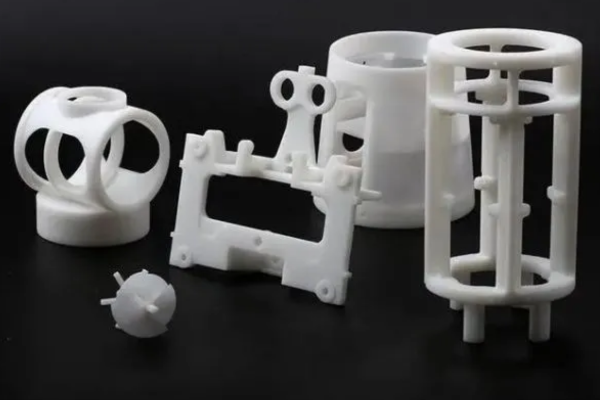

Critical Aerospace Applications of CNC Machined Polyamide Components

The latest planes are built with hundreds of polyamide parts that are produced in the accuracy of the CNC machine. The components play important roles in the aircraft systems and structure.

Polyamide resistance to aviation fuels and hydraulic fluids is used in fuel system components, such as fuel line fittings, valve bodies, and filter housings. The content will not be corroded easily unlike the metals and hence less maintenance will be needed and components will last longer.

Polyamides have been used in combination with other materials that include strength and lightness to be used in interior cabin elements including the seat frames, overhead bin brackets, and the galley equipment mounting points. These parts should resist regular use and be of high flammability requirements.

Electrical and avionics housings safeguard delicate electronic devices against vibration, electromagnetic interference and mechanical damage. Polyamides contain electrical insulation properties and mechanical protection that is why they can be used in these applications.

Landing gear items such as bushings, wear pads and some structural components use polyamides due to its extraordinary resistance to wear and its capacity to function without lubricants. These components should be able to survive thousands of landings.

Components of the engine bay which are not directly in contact with the combustion gases, but which must withstand high ambient temperature and exposure to oils make use of heat-stabilized polyamide formulations. These materials retain their properties in places where the normal polymers would not hold.

Advantages of Polyamide Materials Over Traditional Aerospace Materials

The continued debate on polyamide vs nylon and other materials used in aerospace indicates that there are a number of solid points that go in favor of this material and this explains its wide acceptance.

The most apparent advantage is saving of weight. Polyamide materials are capable of weighing 50-70 percent of metal components of the same size and strength and can be used in most applications. This reduction of weights multiplies in the aircraft since lighter structures do not need much reinforcement, fewer fasteners and minimal support systems.

One of the long-standing issues in the aviation industry is eradicated through Corrosion immunity. Polyamides do not oxidize, rust or corrode when exposed to moisture, salt spray or exposure to chemicals unlike aluminum or steel. This considerably increases the life of the components and lessens the maintenance expenses.

Vibration damping qualities assist in safeguarding delicate equipments and enhance comfort of the passengers. Polyamides inherently absorb vibration energy instead of it being conveyed, making it noisy and ensuring that adjacent components would not be affected by fatigue brought about by vibrations.

The chemical resistance enables polyamides to retain their properties under the influence of aviation fuels, hydraulic fluids, de-icing chemicals and cleaning agents. This is because of its versatility where the same material can be used in various functions in the aircraft.

The properties of some polyamide formulations that allow them to be self-lubricating allow components to work without any lubrication. This lowers maintenance costs and avoids the chances of contamination of lubricants in the sensitive sections such as fuel systems or cabin air supplies.

Manufacturing Challenges When Machining Polyamide Materials

Polyamides have their own challenges in CNC machining, which cannot be handled by just any expertise and machinery. These challenges must be understood in order to manufacture sound aerospace components.

Pre machining material education is important. Moisture is absorbed to the atmosphere by polyamides, which influences the dimensional stability of the polyamides, as well as their machinability. The stock material should be stored under controlled conditions and in some cases before machining, the material should be pre-conditioned to a given amount of moisture.

The cutting operations are to be managed carefully in terms of thermal management. Polyamides have low thermal conductivity, and so cutting heat is concentrated at the tool-material interface instead of being diffused throughout the workpiece. Otherwise, it may lead to local melting, lack of surface finish or dimensional error.

The choice and upkeep of tools required during machining metals is not as high as in machining aluminium. The most effective are carbide or diamond coated tools that are geometries optimised in plastics, although they need to be maintained at a very sharp state. Tool wear monitoring systems assist machinists to change tools before they can wear out and cause a decline in the quality of parts.

Work holding and fixturing is a special problem since polyamides tend to creep under the pressure of the clamp, particularly when hot due to cutting processes. Special fixtures spread the clamping forces more extensively and can incorporate cooling, to ensure that the material does not shift in the machining.

Quality Control and Testing for Aerospace Polyamide Components

The aerospace regulations require high-quality control in the manufacturing process. Parts made out of polyamide materials are heavily tested in order to confirm that they fit all the specification and performance standards.

Dimensional inspection checks are done with coordinate measuring machines to ensure that completed parts are within the specifications required to fit within the required tolerances. Inspection rooms are kept at temperature levels so that measurements are not distorted due to part thermal expansion or contraction.

Material certification is done to ensure that the polyamide stock material is in accordance with the aerospace material specifications. All manufacturers should be able to trace everything fully, record the material lot, certification of suppliers and manufacturing history of each component.

Nondestructive testing techniques such as ultrasonic testing are capable of identifying internal voids, inclusions or any other defect that may weaken component integrity. Internal structure inspection can be done by X-ray without destroying components.

Performance testing exposes sample components to conditions that are beyond the expected work load circumstances. This may involve temperature cycling, testing of chemical exposures, testing of vibration, testing of loads to ensure that the component will work well during its service life.

Environmental and Sustainability Considerations in Aerospace Polyamide Use

Due to the impact of environmental issues on the choice of aerospace design, it becomes more relevant to the sustainability profile of materials. Polyamide vs nylon debate now constitute the environmental impact in addition to technological performance.

Polyamide materials can be recycled which means that end-of-life components of the aircraft can be re-processed instead of getting discarded. Other manufacturers use scrap polyamide as a result of machining and recycled it to suppliers to make new material in a closed-loop system.

The amount of energy used in the production of polyamides is still declining due to the advancement in production. The total lifecycle of the raw material to production of equivalent metal components consumes a lot of energy when compared with modern polyamide production.

The greatest environmental advantage is the fuel savings throughout the service life of the aircraft. The reduction in weight associated with the use of polyamide materials in place of heavier materials are directly reflected in the improvement in fuel consumption and emissions per thousand flight hours.

Another development in aerospace is the possibility of alternative usage of petroleum based polyamides in favor of bio-based polyamides which are made based on renewable resources. Though it is currently a more costly technology, these materials can be used to achieve the same performance with a smaller carbon footprint.

Future Developments in Aerospace Polyamide Applications

Polyamide materials are on the further edge of the aerospace industry, as it strives to do with the material. Studies in higher formulations and production methods can yield even more in the future.

Carbon nanotubes or graphene are added to nano-enhanced polyamides with the potential of having very high improved strength and thermal properties. Such high-technology materials may allow the usage of polyamides in such applications previously occupied by metals or high-technological composites.

Additive manufacturing with CNC finishing could transform the manufacturing process of aerospace polyamide parts. The complex shapes that are not possible to machine using solid stock can be 3D printed, and the resulting surfaces and tight tolerances required by aerospace applications can be finalized using CNC operations.

Smart materials which vary under environmental conditions are an interesting novelty. Adaptive structures that adapt their stiffness depending on temperature or mechanical loading can be made possible by polyamides that are sensitive to temperature or mechanical loading.

Frequently Asked Questions About Polyamide and Nylon in Aerospace

What is the real distinction of polyamide and nylon in aerospace application?

A particular kind of polyamide is nylon, just as a square is a particular kind of a rectangle. Polyamide is a term used to refer to the overall family of polymers with amide bonds and nylon to the polymers formulations that were developed by DuPont. In aerospace terms, the two can be used interchangeably by engineers to refer to more common grades such as Nylon 6 or Nylon 66.

And do polyamide elements have a chance to replace aircraft metal elements?

For many applications, yes. Polyamides have enough strength and better weight reduction to the components that do not undergo extreme conditions or loads. Nevertheless, Metals or advanced composite are still needed in critical structural components and high temperature operations. It will be based on performance needs and safety considerations.

What happens to polyamide aerospace parts when moist?

Polyamides take up moisture in the atmosphere, and this may result in small dimensions and mechanical properties. Polyamides intended for aerospace uses are designed to reduce this effect, and parts are commonly kept closed or coated to stop absorption of moistures. When determining tolerances and performance specifications, design engineers consider possible effects of moisture.

What is the reasoning behind CNC machining of aerospace polyamide parts compared to injection molding of the parts?

CNC machining offers tight tolerances, high material finishes, and consistency of materials needed in the aerospace business. Although injection molding is efficient in large-volume production, some of the aerospace parts are made in relatively small numbers where machining is more cost effective. Also, machining offers quick design modification without the need to have costly tools changed.

Are polyamide materials as strong as metal in service in the aerospace?

The durability is subject to use and the environmental conditions. Polyamides are good in wear resistance, resistant to corrosion and vibration damping which tends to wear longer than metals. Nonetheless, metals are generally superior in high temperature conditions or high mechanical loads. The correct choice of material that is suitable to the application is guaranteed to bring maximum durability.

What are the certification of aerospace polyamide materials?

Polyamide aerospace materials should be of high specifications set by an organization such as SAE International and the relevant aircraft companies. The materials must have certification papers showing that they comply with the standards of flammability and mechanical properties, and that they are consistent. The manufacturers are required to have a full traceability in the supply chain.

Making Informed Decisions About Polyamide Materials in Aerospace

Knowing the correlation of polyamide vs nylon and the application of these materials in aerospace CNC machining would be of great importance as far as the present day aircraft manufacturing is concerned. These all-purpose polymer have won their position in the aviation industry due to their good performance, lightweight, and capability to work in harsh environment.

With the further development of aerospace technology, polyamide materials will certainly become much more significant. They have a combination of light weight, high strength and resistance to environmental factors that would make them the best in the next generation aircraft of more efficient and environmentally friendly aircrafts.

And regardless of whether you are just interested in how modern aircraft are created, or you are looking into a career in aerospace engineering, or are just studying the advanced manufacturing, it is worth noting that the strategic value of material choice and precision manufacturing providing you with a valuable insight into one of the most technologically advanced industries in the world.

The continued development of new polyamide formulations and advanced CNC machining techniques promises even more exciting possibilities for aerospace applications. From commercial airliners to military aircraft to spacecraft, polyamide components machined to exacting standards will remain essential to aviation safety and performance for decades to come.
