In CNC machining, success often comes down to using the right tool for the job. Milling tools may look similar at a glance, but each one is designed for a specific purpose, and using the wrong cutter can lead to wasted time, tool wear, or scrap material. For machinists, understanding the distinctions between different tools — and how they should be paired with holders like an ER collet — is essential for achieving precision and efficiency.

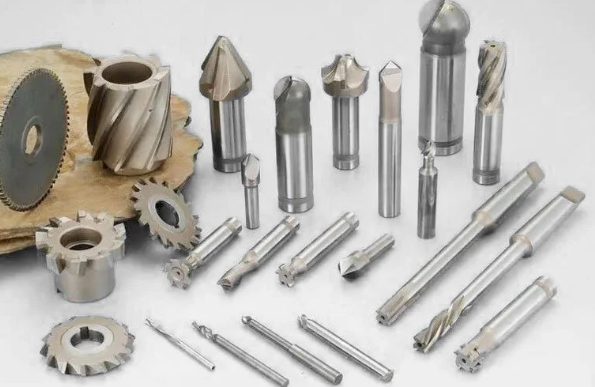

While end mills, thread mills, drills, and other cutters all fall under the broad category of milling tools, their applications vary widely. Knowing the real differences between them helps machinists save time, extend tool life, and improve part quality.
Key Differences at a Glance
1. End Mills
End mills are the most versatile cutters in a machinist’s toolbox. They’re used for profiling, slotting, contouring, and pocketing. Available in flat, ball-nose, and corner-radius styles, end mills can handle a wide range of materials and finishes. Their performance depends heavily on proper tool holding, which is why pairing them with rigid collets is so important.
2. Face Mills
Face mills are designed for removing large amounts of material quickly. With multiple inserts mounted on the tool body, they excel at surfacing operations, producing flat, even finishes. However, they are less flexible than end mills and should be reserved for stock removal and facing applications.
3. Thread Mills
A thread milling cutter creates internal and external threads with greater accuracy and less risk than traditional taps. Unlike taps, which cut threads in one pass, thread mills move in a helical motion, producing cleaner threads with lower tool stress. They’re especially valuable when threading harder materials or when flexibility across thread sizes is required.
4. Drills and Reamers
Drill bits are straightforward tools for creating holes, while reamers refine those holes to precise diameters with smooth finishes. They’re vital for applications requiring tight tolerances in hole dimensions. While drills remove material quickly, reamers ensure accuracy and quality.
5. Specialty Tools
Dovetail cutters, chamfer mills, and T-slot cutters are examples of specialized tools used for unique operations. While not as common as end mills or face mills, they’re essential for parts requiring specific features or geometries.
6. Holder and Collet Impact
Regardless of the cutter, the tool holder plays a major role in performance. Using high-quality CNC lathe tool holders or ER collets ensures tools stay rigid, reducing runout and improving accuracy. Skimping on holders can quickly negate the benefits of even the most advanced cutters.
How to Pick the Right Tool for the Job
1. Match the Tool to the Operation
Every tool has strengths and weaknesses. End mills are best for general-purpose cutting, face mills for material removal, and thread mills for precision threading. Understanding these roles ensures you’re not forcing a tool into an application it wasn’t designed for.
2. Consider the Material
Tool selection also depends on the material being machined. Softer metals like aluminum benefit from high-helix end mills with polished flutes, while harder materials like stainless steel require tougher carbide tools and coatings for durability. Using the wrong tool can lead to premature wear and poor finishes.
3. Pay Attention to Tool Size
Diameter and flute count affect performance. Larger tools remove more material quickly, while smaller tools excel at precision work. Similarly, two-flute cutters provide better chip evacuation in softer materials, while four-flute cutters are stronger and better suited to harder metals.
4. Factor in Tool Holding
Even the best milling tool won’t deliver results without the right holder. Collets and tool holders reduce vibration, improve runout, and keep tools secure. A poorly held tool will wear faster and produce inconsistent cuts, no matter how advanced the cutter itself is.
5. Evaluate Cost vs. Value
Sometimes, machinists focus too much on upfront cost instead of long-term value. Premium tools last longer, deliver more consistent results, and reduce scrap. While they may cost more initially, they save money over time by lowering replacement frequency and improving efficiency.
6. Start Simple, Expand Later
For beginners, it’s best to start with a small set of versatile tools — such as end mills and a thread mill — before investing in specialized cutters. As projects become more complex, you can expand your toolkit to include specialty tools and advanced coatings.
Milling tools may appear similar, but the real differences between them impact every aspect of machining performance. End mills, face mills, thread mills, and specialty cutters each serve unique roles, and using them correctly ensures efficiency, accuracy, and long tool life.
By matching the right tool to the job, considering material and size, and investing in proper holders, machinists can avoid common mistakes and maximize shop productivity. With the right combination of cutters and tool holders, every cut becomes cleaner, faster, and more reliable — the hallmark of an efficient CNC setup.
