DIY Solar Charge Controller Guide: How to Install and Optimize Your Solar Power System

When building a solar power setup at home, one of the most important components is the solar charge controller. It regulates the energy coming from solar panels, prevents battery overcharging, and ensures long-lasting system performance. Without it, your solar batteries could suffer damage and reduce the overall efficiency of your renewable energy investment.

In fact, many off-grid hobbyists report losing up to 30% of battery capacity within the first year when running panels without a charge controller. This small device is therefore one of the best insurance policies for your renewable energy system.

This guide will walk you through the process of installing and optimizing your solar charge controller in a DIY manner, making it easier to harness solar energy for daily use.

Understanding the Role of a Solar Charge Controller

Before beginning installation, it is important to understand what a solar charge controller does and why it is essential for every solar system.

What Is a Solar Charge Controller?

A solar charge controller is a device that manages the voltage and current produced by solar panels before they reach the battery bank. Since solar panels can produce more energy than a battery can safely handle, the controller ensures charging happens within safe limits.

Why You Need One

• Protects batteries from overcharging

• Prevents deep discharge

• Improves battery lifespan

• Balances power between solar panels, batteries, and load

By adding this device, you safeguard both your batteries and the investment in your entire solar setup. One RV owner on DIY Solar Forum shared that after running a 200W system without a controller, his AGM battery swelled in just 8 months. With a 20A MPPT controller, the replacement battery lasted over 3 years.

Types of Solar Charge Controllers

There are two primary types commonly used in home installations:

PWM (Pulse Width Modulation) Controllers

PWM controllers are cost-effective and work best for small-scale solar systems. They match the panel output with the battery’s voltage, making them simple and efficient for low-power setups.

MPPT (Maximum Power Point Tracking) Controllers

MPPT controllers are more advanced, capable of extracting maximum power from solar panels by adjusting voltage and current dynamically. They are ideal for larger solar systems and offer higher efficiency. According to tests by the U.S. Department of Energy, MPPT controllers can improve energy harvest by 15–25% compared to PWM under varying sunlight conditions.

Quick Comparison: PWM vs MPPT

For a small 12V cabin or RV setup, PWM solar charge controllers are often enough.

But for a 400W+ rooftop array or systems expected to grow over time, MPPT solar charge controller provides better long-term value.

Tools and Materials You’ll Need

• Solar panels

• Solar charge controller

• Battery bank

• Cables and connectors

• Fuse and breaker box

• Multimeter for voltage testing

• Mounting hardware

Having the right tools ensures a smooth installation process.

Step-by-Step Installation of a Solar Charge Controller

Step 1: Position Your Components

Decide where the controller, batteries, and panels will be located. Keep the controller close to the batteries to reduce energy loss through long cables.

Step 2: Connect the Battery to the Controller

Always connect the battery first. This allows the controller to detect the system voltage automatically. Use properly sized cables and secure them tightly to prevent heat buildup. This follows NEC guideline 690.8, which recommends connecting the battery first to ensure safe voltage detection.

Step 3: Connect the Solar Panels

After the battery connection, link the solar panels to the controller. Ensure correct polarity (positive to positive, negative to negative). Many controllers have a display or indicator light to confirm proper connection.

Step 4: Connect the Load (Optional)

Some controllers have a dedicated output for DC loads. If you plan to power lights or appliances directly from the controller, connect them at this stage.

Step 5: Secure Fuses and Breakers

Add fuses between the controller and battery, as well as between the controller and solar panels. This step increases system safety.

Wiring Overview

This table provides a quick checklist to confirm that all major components are correctly wired. Experienced DIYers recommend labeling each cable during installation to simplify future maintenance.

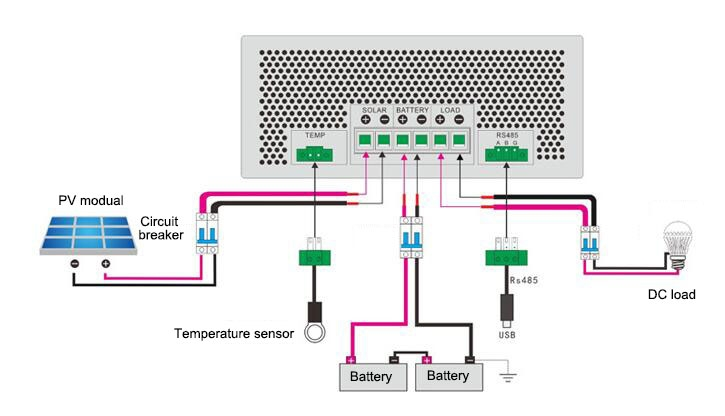

Example wiring diagram of a solar charge controller connecting PV modules, batteries, and DC loads.

Optimizing Your Solar Charge Controller for Maximum Efficiency

Regular Maintenance

• Check connections monthly to ensure no loose wires

• Clean terminals to prevent corrosion

• Monitor battery levels to avoid deep discharge

Proper Sizing

Choose a controller that matches your system voltage and current capacity. For example, a 400W solar array at 12V produces about 33A; selecting a 40A MPPT solar charge controller gives you the necessary margin and room for expansion.

Monitoring Features

Modern charge controllers come with digital displays or Bluetooth monitoring options. Keep an eye on voltage, current, and charge cycles to optimize energy use.

Safety Tips for DIY Installation

• Always disconnect panels before working on the controller

• Wear insulated gloves when handling wires

• Do not exceed the controller’s rated capacity

• Install in a dry, ventilated location to prevent overheating

Experienced DIYers follow the rule: “Test twice, connect once,” using a multimeter before every connection.

Frequently Asked Questions (FAQs)

1. Can I install a solar charge controller without professional help?

Yes, with basic electrical knowledge and the right tools, you can install it yourself. However, larger systems may require expert assistance to comply with local electrical codes (NEC in the U.S.).

2. How do I know what size solar charge controller I need?

Divide the panel’s wattage by the system voltage to find the current. For instance, a 400W / 12V system = 33A. Choose a controller rated at least 20–30% higher, e.g., 40A.

3. What happens if I don’t use a solar charge controller?

Batteries can overcharge or discharge excessively, leading to reduced lifespan, overheating, or even permanent damage. A case on DIY Solar Forum showed a battery bank swelling after only 9 months of uncontrolled charging.

4. Do solar charge controllers work with all types of batteries?

Most controllers support lead-acid, AGM, gel, and lithium. Always check the controller’s settings to match your specific battery type.

Installing a solar charge controller is one of the most important steps in building a DIY solar power system. It not only protects your batteries but also maximizes efficiency and system reliability.

Field experience from small off-grid systems shows that even a modest 12V, 400W array can extend battery life by 20–25% when paired with a properly sized MPPT controller. For U.S. homeowners and DIY enthusiasts, always select controllers carrying UL or ETL certification and follow NEC safety standards for compliance.

With the right controller, proper installation, and regular maintenance, your solar power system can deliver reliable clean energy for many years while reducing dependency on the grid.
